HGL Series Londini System Switch est similis in structuram ad a disconnector (utrisque visibilia Disiunctio puncta in Disiunctio rei publicae), sed non potest esse aperire et claudere circuits, quae rursus in circuitu rupta.
Tamen, circuitus potest control ullo quolibet circuitu, dum aload confractus switch non solum switch in vel off onus current, aut switch off in onus current, ut non solum ad switch et in circuits in normalis condiciones, nec brevis Circuitus Culpa. Sed requiritur ut eius structuram potest transire culpa current brevis circuitu tempus sine damna.
Quia arcus exstinguendo fabrica et contactus de onus confractus switch sunt disposito et interficiam off et coniungere onus current, in onus confractus switch debet esse cum in fuse in casibus, et hoc est reus est de brevi-casibus Culpa.
Et aperire et claudendo frequency et operating vita onus Disconnecting virgas plerumque altius quam ea de circuitu.
HGL Load confractus Disconnect Switches sunt disposito ad tractamus princeps gradus electrica current, cursus tutum Disiunctio etiam sub gravibus onus conditionibus.
Built in durabile materiae, hi virgas offer longum perpetuam perficientur potest sustinere dura environmental conditionibus.
In pacto et ergonomic consilio HGL onus confractus Disconnect Switches planto eos securus install et ponere, etiam in spatio-coactus environments.
Instructa provectus salutem features, comprehendo arcum exstinguendo gazophylacia et visibilis conteram Indicatores, hi virgas augendae operational salutem.
Per providing certa modo disconnecting electrica circuits, HGL Load confractus Disconnect SWitches auxilium ne electrica accidentia et apparatu damnum.
Hae switches patitur velox et tutum solitudo electrica apparatu, facilitating sustentationem et reducendo downtime.
Idoneam ad amplis applications, comprehendo potentia distribution, industriae machinery et commercial electrica installations.
HGL onus confractus Disconnect Switches occursum Internationalis Safety et perficientur signa, ensuring obsequium cum regulatory requisitis.
7.electrical et mechanica proprietatibus LXIII ~ 3150A
| Conventional heating current lth | 63a | 100A | 160a | 250A | 400A | 630a | 1000a | 1250a | 1600a | 2000A | 2500A | 3150A | ||
| Rated Voltage UI (V) | 750 | 800 | 1000 | |||||||||||
| Dielectric fortitudinem (V) | 3000 | 3500 | ||||||||||||
| Rated impetus sustinere votage Uimp (KV) | 6 | 8 | 12 | |||||||||||
| Rated Working Voltage Ue (V) | Ac400,600 | |||||||||||||
| Rated frequency | 50Hz | |||||||||||||
| Utlization genus | AC-21,22,23 | |||||||||||||
| Rated operatus Current In (a) |
Ac440v | AC-XXI | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 |
| AC-XXII | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | ||
| AC-XXIII | 50 | 80 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1250 | 2000 | 2500 | ||
| Ac660v | AC-XXI | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | |
| AC-XXII | 63 | 80 | 100 | 200 | 315 | 400 | 630 | 630 | 800 | 1000 | 1000 | 1250 | ||
| AC-XXIII | 40 | 63 | 63 | 125 | 200 | 250 | 250 | 400 | 500 | / | / | / | ||
| Rated faciens facultatem (a) | 10le | |||||||||||||
| Rated breakin facultatem (a) | 8LE | |||||||||||||
| Rated Short-circut faciens caquiegy KCM (Ka) | 1.7 | 1.7 | 12 | 17 | 30 | 40 | 70 | 70 | ||||||
| 1s brevis tempus resistere current LCW (Ka) | 3 | 3 | 10 | 12 | 20 | 25 | 50 | 50 | ||||||
| Mechanica vitae (times) | 5000 | 5000 | 5000 | 3000 | 2000 | 1000 | ||||||||
| Electrica vitae (times) | 1000 | 1000 | 1000 | 600 | 300 | / | ||||||||
| Operating torque (n.m) | 3.5 | 3.5 | 6.5 | 10 | 15 | 27 | 60 | |||||||
| Pondus (kg) (Sine manubrio) |
3p | 0.32 | 0.39 | 0.88 | 1.6 | 3.8 | 4.2 | 10.5 | 10.5 | 16 | 31 | 31 | 42 | |
| 4p | 0.34 | 0.41 | 1.1 | 2 | 4.6 | 5 | 13 | 13 | 20 | 40 | 40 | 49 | ||

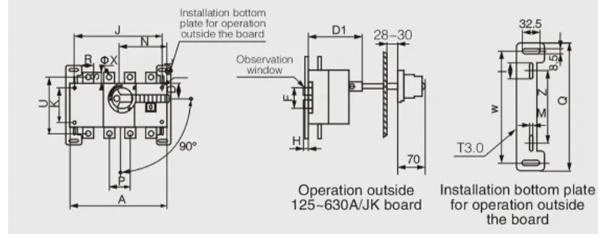

| Spec. | Dimensionem deorsum tabulas | ||||
| CXXV ~ 630a | 1 | M | Z | W | Q |
| 125a | 55 | 5.5 | 85 | 190 | 218 |
| 160a | 55 | 5.5 | 85 | 190 | 218 |
| 200A | 55 | 5.5 | 85 | 190 | 218 |
| 250A | 55 | 5.5 | 85 | 190 | 218 |
| 315a | 60 | 6.5 | 130 | 240 | 270 |
| 400A | 60 | 6.5 | 130 | 240 | 270 |
| 500A | 60 | 6.5 | 130 | 240 | 270 |
| 630a | 60 | 6.5 | 130 | 240 | 270 |

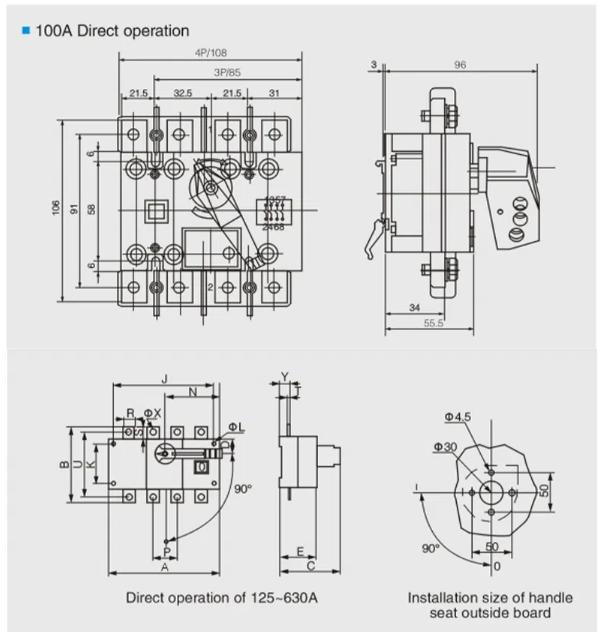

| Spec. | Altiore et institutionem dimensionem | |||||||||||||||||||||
| In | A | A1 | B | C | D | D1 | E | Φl | J | J1 | K | N | P | R | S | T | U | Φx | Y | F | H | |
| 125a / III | 140 | 50 | 135 | 116 | 27 | 92 | 71 | 5.5 | 120 | 120 | 65 | 85 | 36 | 20 | 235 | 3.5 | 85 | 9 | 24 | 52 | 10 | |
| 125a / IV | 170 | 50 | 135 | 116 | 27 | 92 | 71 | 5.5 | 150 | 150 | 65 | 85 | 36 | 20 | 235 | 3.5 | 85 | 9 | 24 | 52 | 10 | |
| 160a / III | 140 | 50 | 135 | 116 | 27 | 92 | 71 | 5.5 | 120 | 120 | 65 | 85 | 36 | 20 | 235 | 3.5 | 85 | 9 | 24 | 52 | 10 | |
| 160A / IV | 170 | 50 | 135 | 116 | 27 | 92 | 71 | 5.5 | 150 | 150 | 65 | 85 | 36 | 20 | 235 | 3.5 | 85 | 9 | 24 | 52 | 10 | |
| 200A / III | 180 | 60 | 170 | 128 | 35 | 104 | 83 | 5.5 | 160 | 160 | 90 | 115 | 50 | 25 | 290 | 3.5 | 110 | 11 | 25 | 79 | 13 | |
| 200A / IV | 230 | 60 | 170 | 128 | 35 | 104 | 83 | 5.5 | 210 | 210 | 90 | 115 | 50 | 25 | 290 | 3.5 | 110 | 11 | 25 | 79 | 13 | |
| 250A / III | 180 | 60 | 170 | 128 | 35 | 104 | 83 | 5.5 | 160 | 160 | 90 | 115 | 50 | 25 | 290 | 3.5 | 110 | 11 | 25 | 79 | 13 | |
| 250A / IV | 230 | 60 | 170 | 128 | 35 | 104 | 83 | 5.5 | 210 | 210 | 90 | 115 | 50 | 25 | 290 | 3.5 | 110 | 11 | 25 | 79 | 13 | |
| 315a / III | 230 | 85 | 240 | 169 | 50 | 133 | 113 | 7 | 210 | 210 | 140 | 145 | 65 | 30 | 400 | 5 | 160 | 11 | 36 | 100 | 24 | |
| 315a / IV | 290 | 85 | 240 | 169 | 50 | 133 | 113 | 7 | 270 | 270 | 140 | 145 | 65 | 30 | 400 | 5 | 160 | 11 | 36 | 100 | 24 | |
| 400A / III | 230 | 85 | 240 | 169 | 50 | 133 | 113 | 7 | 210 | 210 | 140 | 145 | 65 | 30 | 400 | 5 | 160 | 11 | 36 | 100 | 24 | |
| 400A / IV | 290 | 85 | 240 | 169 | 50 | 133 | 113 | 7 | 270 | 270 | 140 | 145 | 65 | 30 | 400 | 5 | 160 | 11 | 36 | 100 | 24 | |
| 500A / III | 230 | 85 | 260 | 169 | 50 | 133 | 113 | 7 | 210 | 210 | 140 | 145 | 65 | 40 | 400 | 6 | 160 | 12 | 36 | 100 | 24 | |
| 500A / IV | 290 | 85 | 260 | 169 | 50 | 133 | 113 | 7 | 270 | 270 | 140 | 145 | 65 | 40 | 400 | 6 | 160 | 12 | 36 | 100 | 24 | |
| 630a / III | 230 | 85 | 260 | 169 | 50 | 133 | 113 | 7 | 210 | 210 | 140 | 145 | 65 | 40 | 400 | 6 | 160 | 12 | 36 | 100 | 24 | |
| 630a / IV | 290 | 85 | 260 | 169 | 50 | 133 | 113 | 7 | 270 | 270 | 140 | 145 | 65 | 40 | 400 | 6 | 160 | 12 | 36 | 100 | 24 | |
