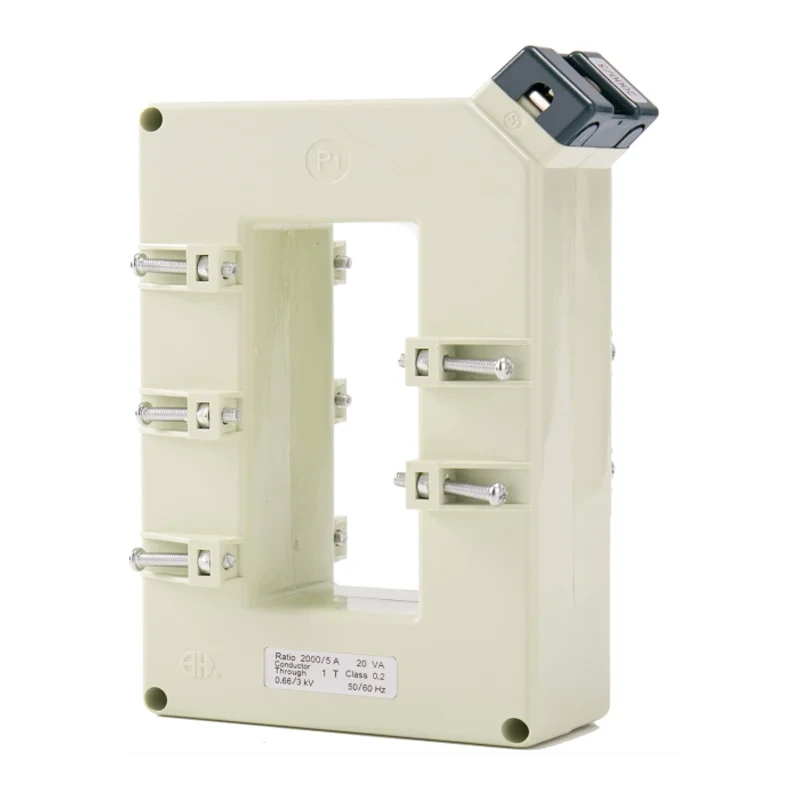

Et BH-0,66 series ⅱ current Transformers sunt disposito ad verius metimur et transformare excursus in standardized values et vigilantia et imperium proposita. Cum provectus technology et praecisione Engineering, haec current Transformers offerre reliable perficientur et diuturnitatem in variis industriae applications.
. High accuratissime: et bh-0,66 series ⅱ current Transformers providere precise mensuras cum excelsum gradu accurate.
. Lata Apta: idoneam usum in amplis industriae occasus, inter potentia distribution, industria procuratio et apparatu magna.
. Securus installation: disposito facile installation et integrationem in existentium systems, reducendo downtime et sustentacionem costs.
. Robust constructione: ædificavit ut resistere dura operating conditionibus et curare diu term perficientur reliability.
. Obsequium: Meets Internationalis signa ad qualis et salus, ensuring obsequium cum industria ordinationes.
Rectangulum (horizontalis) fenestram apta plures bus vectes tum funem. Maxime propter instrumental et metering, repleti epoxy resinae intra casing.has quattuor magnitudinum cum late Ratio range.window potest esse adaequatum adimplere diversis mos
requisita.

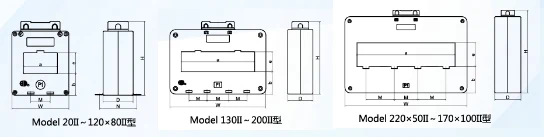

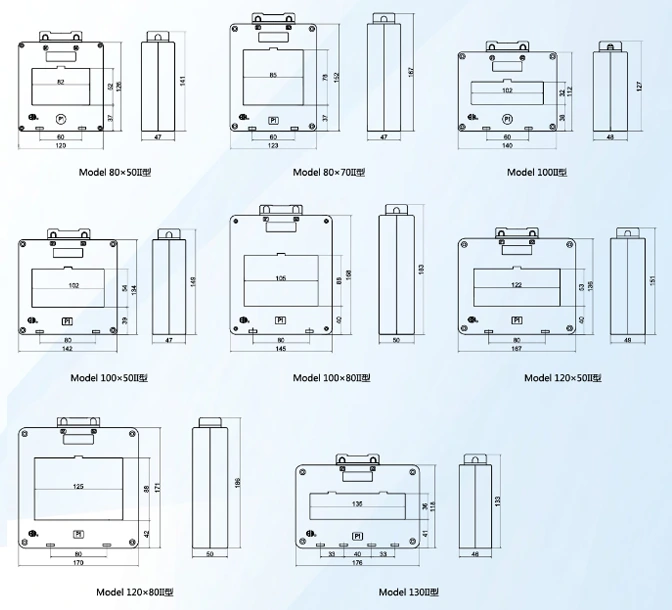

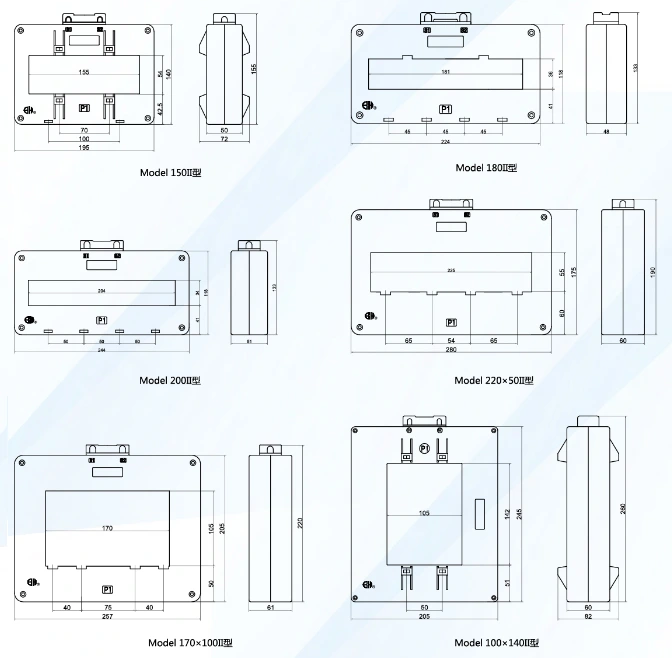

| Exemplar | Cutline dimensionem (mm) | Wdnow dimersion (mm) | Instalational (mm) | Instalational modum | |||||||
| W | H | D | b | a | e | M | N | ||||
| 20II | 49 | 101 | 45 | 27 | 21 | 32 | 17.4 | 58 | |||
| 30II | 60 | 101 | 45 | 28.5 | 34 | 32 | 28.4 | 58 | AE | ||
| 30ii-II | 60 | 87 | 35 | 21.5 | 31.5 | 31 | 34 | 58 | AE | ||
| 40II | 75 | 103 | 45 | 27 | 41.5 | 31 | 45 | 58 | AE | ||
| 50ii | 87 | 113 | 46 | 33 | 52 | 32 | 30 | 58 | AE | ||
| 60ii | 98 | 115 | 46 | 34 | 62 | 32 | 42 | E F | |||
| 60x50ii | 100 | 141 | 46 | 37 | 62 | 52 | 42 | E F | |||
| 80II | 118 | 119 | 46 | 34 | 82 | 32 | 60 | E F | |||
| 80x50ii | 120 | 141 | 47 | 37 | 82 | 52 | 60 | E F | |||
| 80x70ii | 123 | 167 | 47 | 37 | 85 | 78 | 60 | E F | |||
| 100ii | 140 | 127 | 48 | 38 | 102 | 32 | 60 | E f | |||
| 100x50ii | 142 | 149 | 47 | 39 | 102 | 54 | 80 | E F | |||
| 100x80ii | 145 | 183 | 50 | 40 | 105 | 88 | 80 | E F | |||
| 120x50ii | 167 | 151 | 49 | 40 | 122 | 53 | 80 | E F | |||
| 120x80ii | 170 | 186 | 50 | 42 | 125 | 88 | 80 | E F | |||
| 130ii | 176 | 133 | 46 | 41 | 135 | 36 | 33 | 40 | 33 | E F | |
| 150II | 195 | 155 | 50 | 42.5 | 155 | 54 | 100 | D | |||
| 180ii | 224 | 133 | 48 | 41 | 181 | 36 | 45 | 45 | 45 | E f | |
| 200ii | 244 | 133 | 51 | 41 | 204 | 34 | 50 | 50 | 50 | E F | |
| 220x50ii | 280 | 190 | 60 | 60 | 225 | 55 | 65 | 54 | 65 | E f | |
| 170x100ii | 257 | 220 | 61 | 50 | 170 | 105 | 40 | 75 | 40 | E f | |
| 100x140ii | 205 | 260 | 60 | 51 | 105 | 142 | 50 | D | |||
| Exemplar | 20II | 30II | 30ii-II | 40II | 50ii | 60ii | 60x50ii | 80II | |
| Max bushar magnitudine / qty | 20x10 / 1-2 | 30x10 / 1-2 | 30x10 / 1-2 | 40x10 / 1-2 | 50x10 / 1-2 | 60x10 / 1-2 | 60x10 / 2-3 | 80x10 / 1-2 | |
| Genus accuracy | 0,5 I | 0,5 I | 0,5 I | 0,2 0.5 I | II 0,5 | 0,2 0,5 | 0,2 0,5 | 0,2 0,5 | |
| Prima current / secundarium Current (a) |
Rated onus (VA) | ||||||||
| 100 | 5 | 2.5 | 25 | 2.5 | 25 | ||||
| 125 | 2.5 | 25 | 2.5 | 2.5 | |||||
| 150 | 25 | 2.5 | 2.5 | 2.5 | 2.5 | ||||
| 200 | 5 | 5 | 5 | 5 | 5 | ||||
| 250 | 5 | 5 | 5 | 5 | 5 | 5 | |||
| 300 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 400 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 500 | 5 | 5 | 10 | 10 | 10 | 10 | 10 | ||
| 600 | 5 | V X XV | 10 | 10 | 10 | 10 | |||
| DCCL (DCCC) | 5 | V X | V X | V X | V X | V X | |||
| 1000 | 15 | 15 | 15 | 15 | 15 | ||||
| MCC (MCCL) | 20 | 20 | 20 | 20 | 20 | ||||
| MD (MDC) | 20 | 20 | 20 | 20 | |||||
| 2000 | 20 | 20 | 20 | ||||||
| 2500 | 30 | 30 | |||||||
